SMD PD Receiver Tube for Pulse Oximeter Probe Applications
A miniature square SMD photodiode receiver designed for pulse oximeter probes, fingertip SpO₂ meters, wearable health monitoring devices, and precision optical transmission detection modules.
Product Overview
This SMD PD receiver tube is developed by Jiangmen Yiyang Infrared Semiconductor for pulse oximeter probes, fingertip pulse oximeters, and wearable health monitoring devices. It adopts a miniature square surface-mount package with a built-in large-area square photosensitive chip. The black filtered epoxy housing helps block ambient stray light interference, while its spectral response is well matched with 660nm red light and 905nm infrared dual-wavelength emitters, forming a complete pulse oximeter transmission detection module. With standard two-pin gold-plated pads, it supports fully automatic SMT mounting and standard reflow soldering. Its compact size saves PCB space, while high photoelectric linearity and extremely low dark current make it a core sensing component for medical SpO₂ detection.
Detailed Specifications
| Package Type | Miniature square two-pin SMD package |
|---|---|
| Epoxy Housing | Black filtered epoxy resin, designed to block visible stray light and pass the 600–1100nm detection band |
| Solder Pads | Thickened gold-plated pads with excellent oxidation resistance and solder wettability |

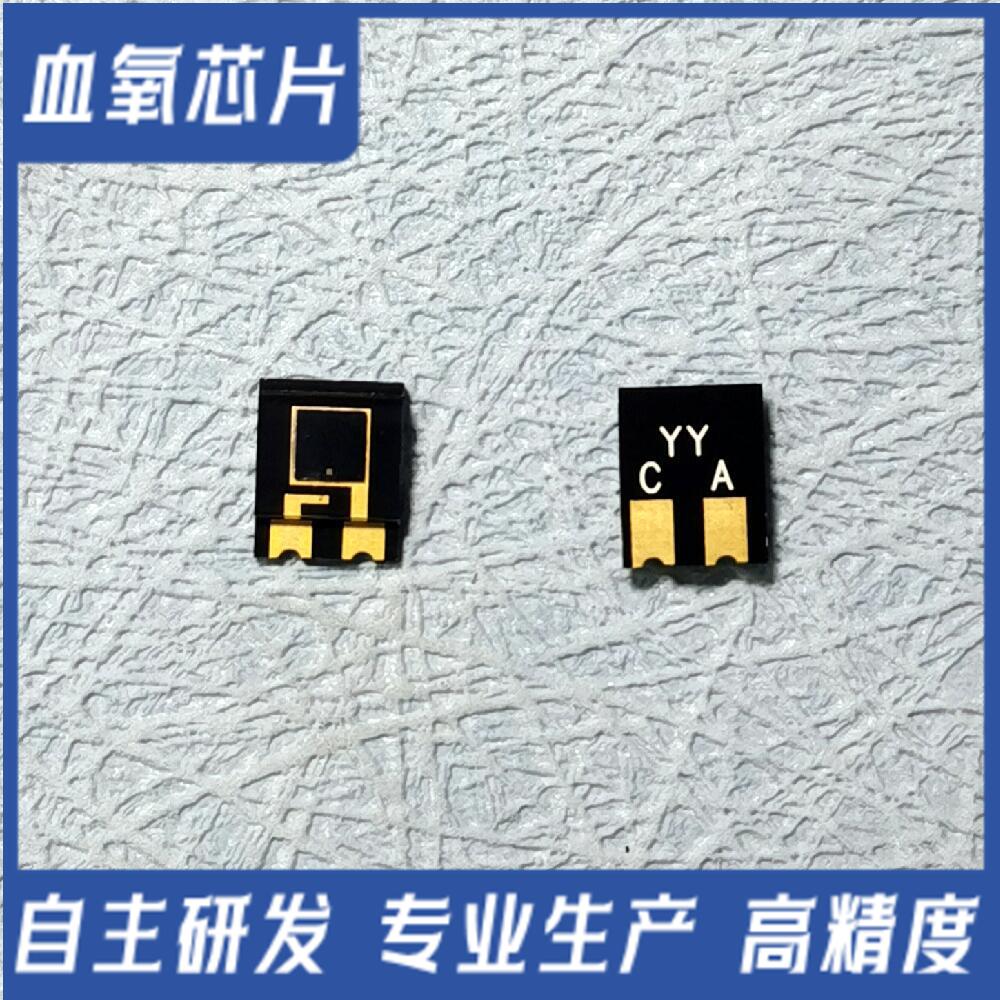

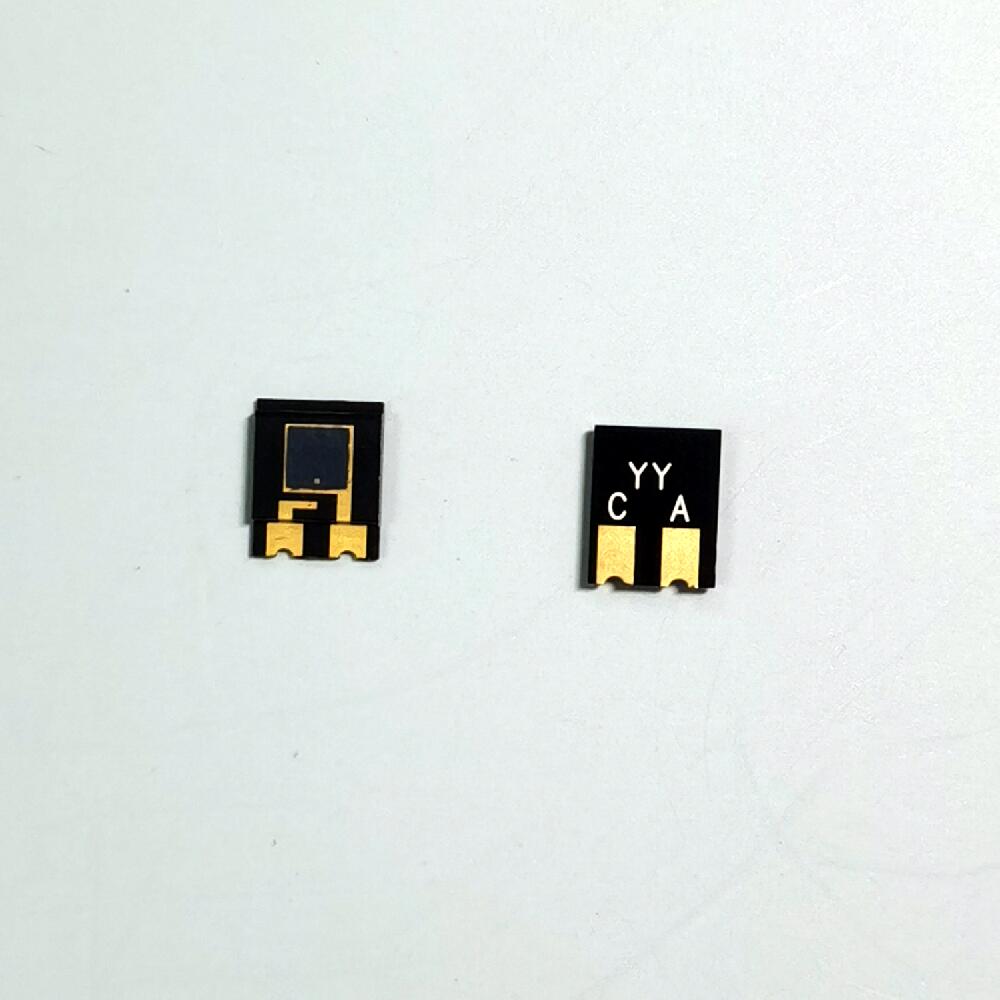

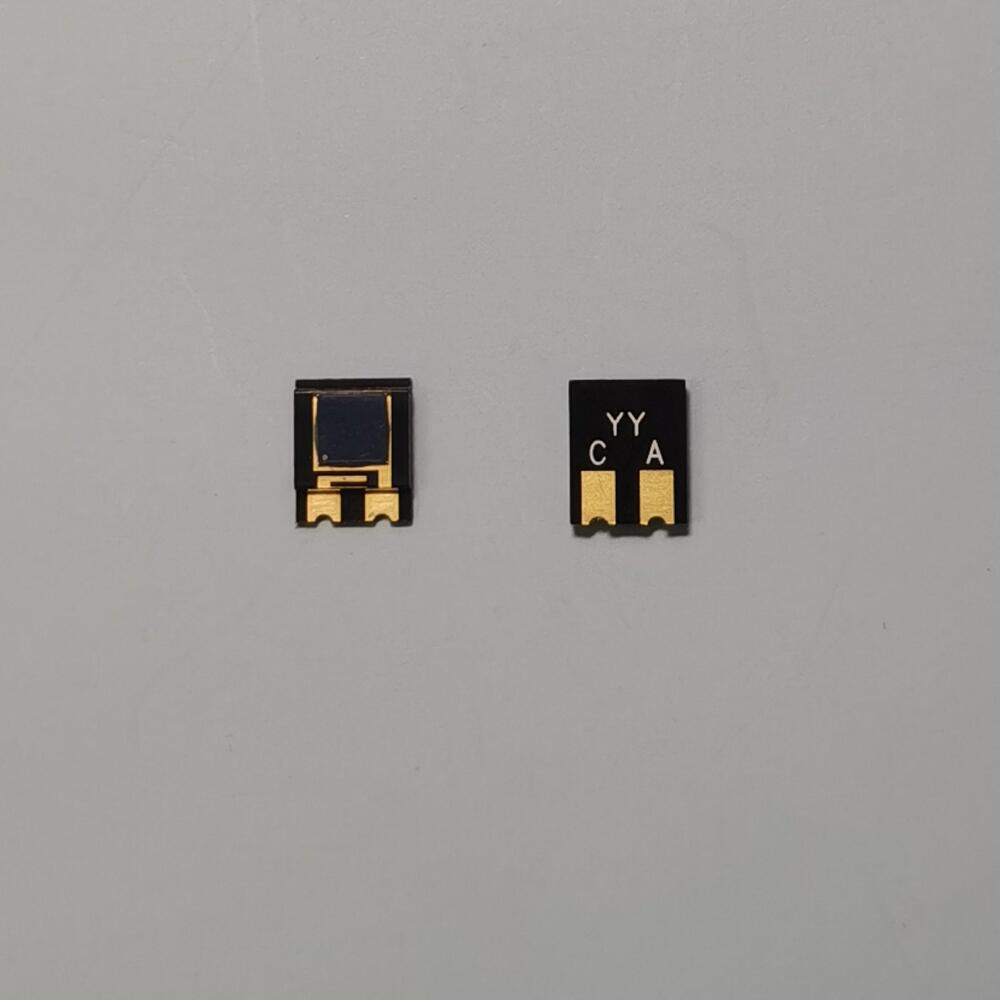

| Marking | YY brand marking with A Anode / C Cathode polarity identification on the back side |
| Photosensitive Chip | Large-size square PD photosensitive chip with large receiving area and stable sampling performance |
| Spectral Response Range | 400nm–1100nm, compatible with 660nm red light and 905nm near-infrared SpO₂ dual wavelengths |
| Dark Current | Ultra-low leakage current, helping prevent signal drift during long-term measurement in dark environments |
| Photocurrent | Wide linear photoelectric conversion range for accurate pulse oximeter transmission sampling |
| Reverse Voltage | ≥30V |
| Temperature Resistance | -20℃ to +85℃, suitable for standard SMT reflow soldering processes |
| Environmental Standard | RoHS and SGS lead-free environmental compliance, suitable for medical device export applications |
Black Filtered Package
The black light-shielding epoxy blocks indoor white light and outdoor strong light, helping prevent reading drift and measurement failure in complex lighting environments.
Miniature SMD Design
The compact and thin package greatly reduces PCB space compared with through-hole PD tubes, making it ideal for disposable probes, wristband SpO₂ modules, and slim fingertip oximeters.
Gold-Plated Pads for SMT Production
Thickened gold-plated pads resist oxidation and provide uniform solder paste adhesion, supporting high-yield reflow soldering and high-speed automatic SMT mounting.
Large Square Photosensitive Area
The customized square photosensitive chip provides uniform light receiving and strong consistency for red and infrared signals, improving SpO₂ and pulse detection accuracy.
Complete Matching Supply
It can be supplied together with the matching 2-pin SMD 660nm + 905nm dual-wavelength emitter, reducing component selection work and material management costs.
Medical-Grade Quality Control
Produced in a dust-free packaging workshop and fully inspected for photocurrent, dark current, and spectral response to ensure consistent batch performance.
Application Scenarios
- Medical SpO₂ Detection Devices Disposable pulse oximeter probes, fingertip pulse oximeters, monitor SpO₂ modules, and wearable pulse oxygen wristbands.
- Home Portable Health Instruments Mini fingertip SpO₂ meters, household pulse monitoring wristbands, and portable health monitoring devices.
- Optical Skin Detection Equipment Skin spectrum analyzers, vein imaging devices, and non-invasive optical detection modules.
- Transmission Optical Sensing Near-infrared material composition detection, bio-optical sampling, and compact transmission photoelectric sensors.
SMT Soldering & Usage Notes
- Reflow Temperature Control Recommended peak temperature should be ≤260℃, with high-temperature exposure time controlled within 10 seconds to avoid chip damage.
- Polarity Identification The back marking A indicates the anode, and C indicates the cathode. Reverse connection is not allowed.
- Optical Path Matching Use together with a 660nm + 905nm dual-wavelength SMD emitter and align the optical path to fully illuminate the photosensitive window.
- Moisture-Proof Storage Products are supplied in vacuum moisture-proof tape packaging. Mounting is recommended within 24 hours after opening. Long-term storage should remain sealed and moisture-proof.
Manufacturer Supporting Services
Jiangmen Yiyang Infrared Semiconductor, also known as Yiyang Optoelectronics YY, is a source manufacturer focusing on medical-grade infrared emitting and receiving components. Standard two-pin SMD SpO₂ PD receiver tubes are available from stock, and samples can be shipped on the same day. The company supports custom photosensitive chip size, pad spacing, special spectral response, and small-batch rapid sampling. Matching 660nm + 905nm SMD emitters and through-hole square PD receivers can also be supplied. RoHS and SGS reports, product specifications, domestic batch orders, and export medical device orders are supported.
Purchasing Information
- Sample Service A small quantity of samples can be provided for testing. Customers only need to cover shipping costs.
- Lead Time In-stock orders usually ship within 1–3 days, while customized models are typically scheduled within 3–7 days.
- Packaging Standard moisture-proof tape-and-reel packaging is available, suitable for fully automatic SMT machine feeding.
- Customization Service Photosensitive area, solder pad specification, spectral response range, and matched emitting components can be customized.
