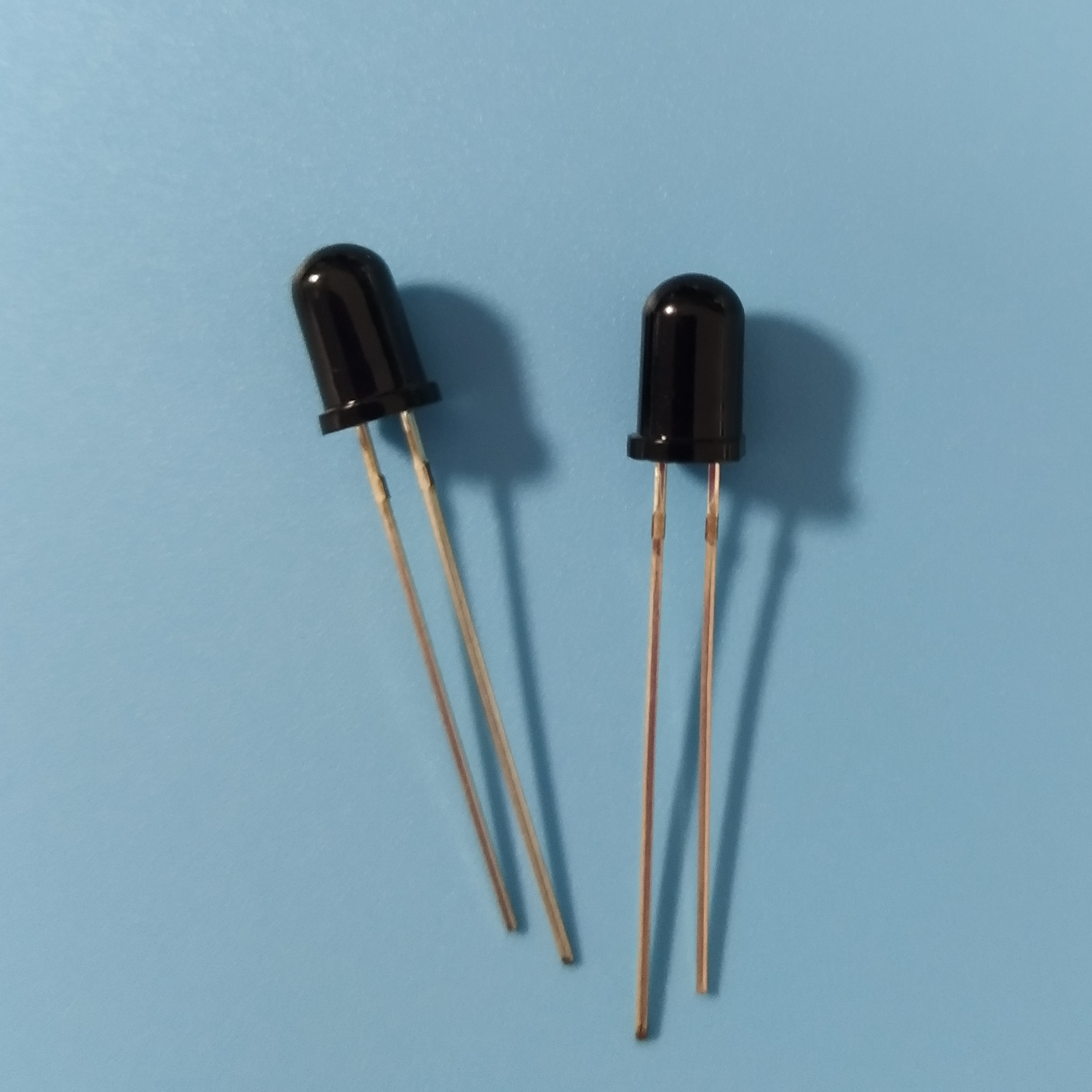

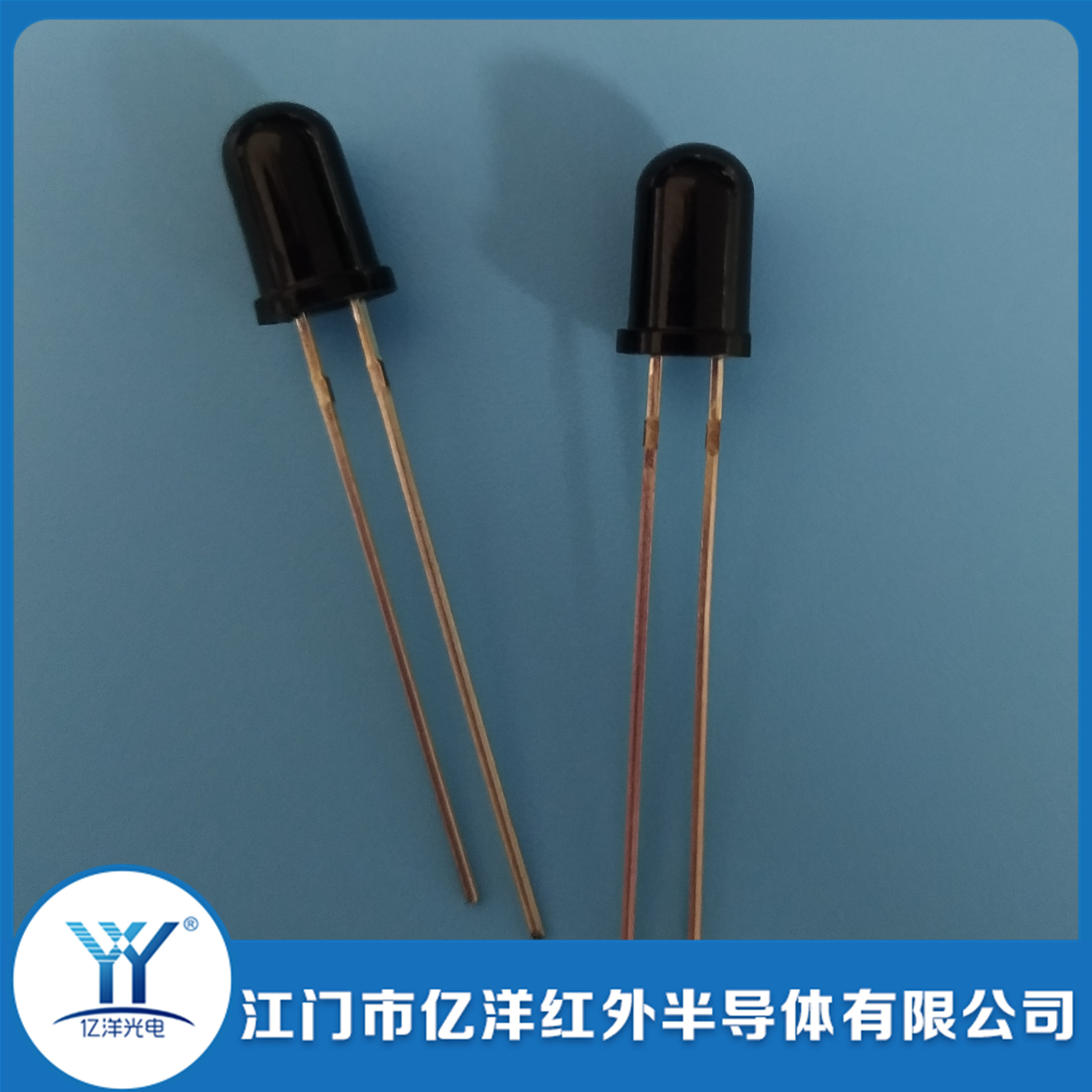

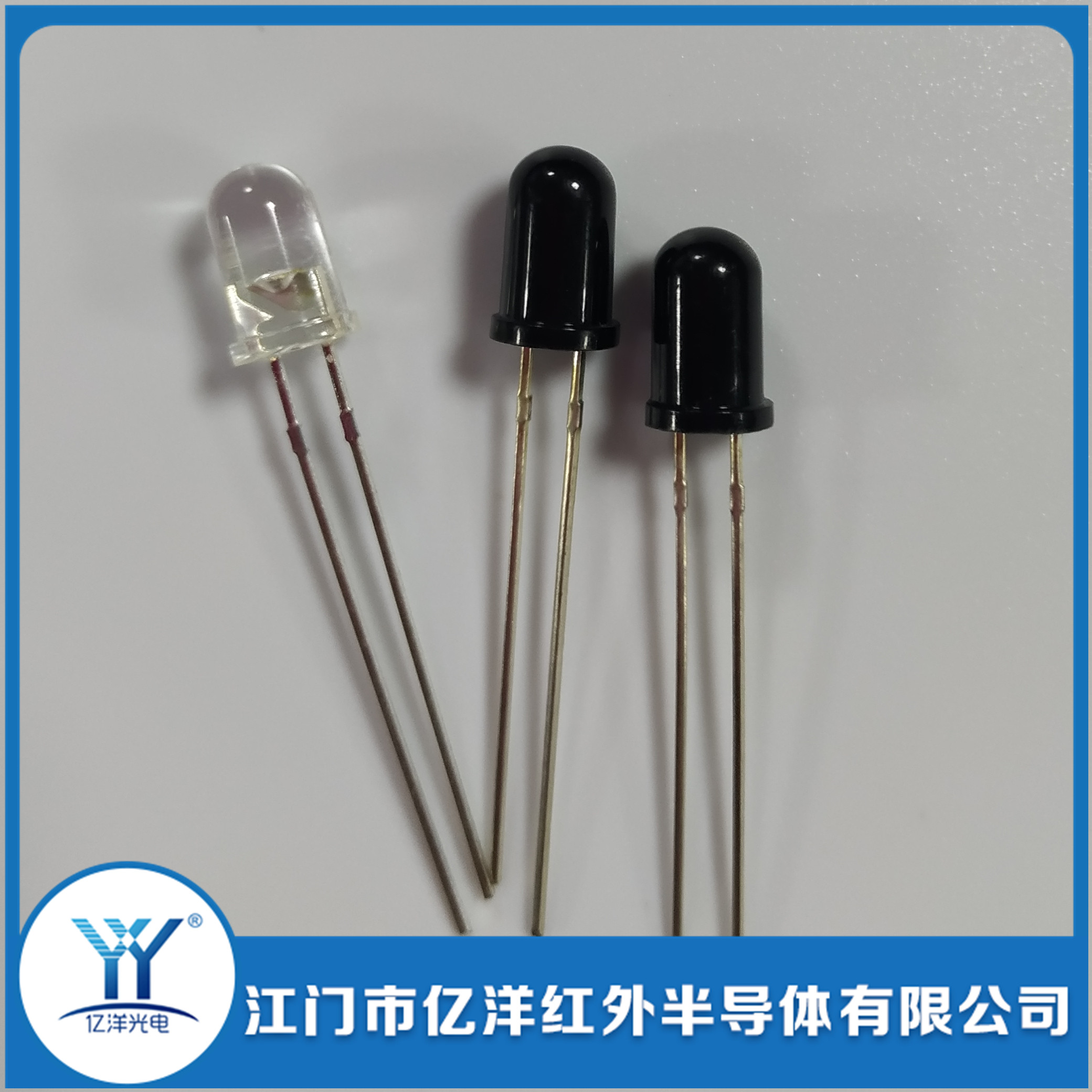

5mm Round Black Filtered Infrared Receiver Photodiode
A high-sensitivity DIP infrared receiving photodiode with a black filtered epoxy body, designed for stable infrared signal reception, fast photoelectric response, and reliable performance in sensing, security, scanning, remote control, and industrial automation applications.
Product Overview
This product is a 5mm round black filtered infrared receiver photodiode with a standard through-hole DIP package. The 24mm extended leads can be freely trimmed according to PCB installation requirements. Its black epoxy body filters visible ambient light and only receives infrared wavelengths from 840nm to 1100nm. It is commonly paired with 940nm infrared emitting LEDs for infrared beam detection, security sensing, barcode scanning, and remote-control receiving equipment. The product features high photoelectric conversion sensitivity, fast response speed, and stable batch consistency.
Core Specifications

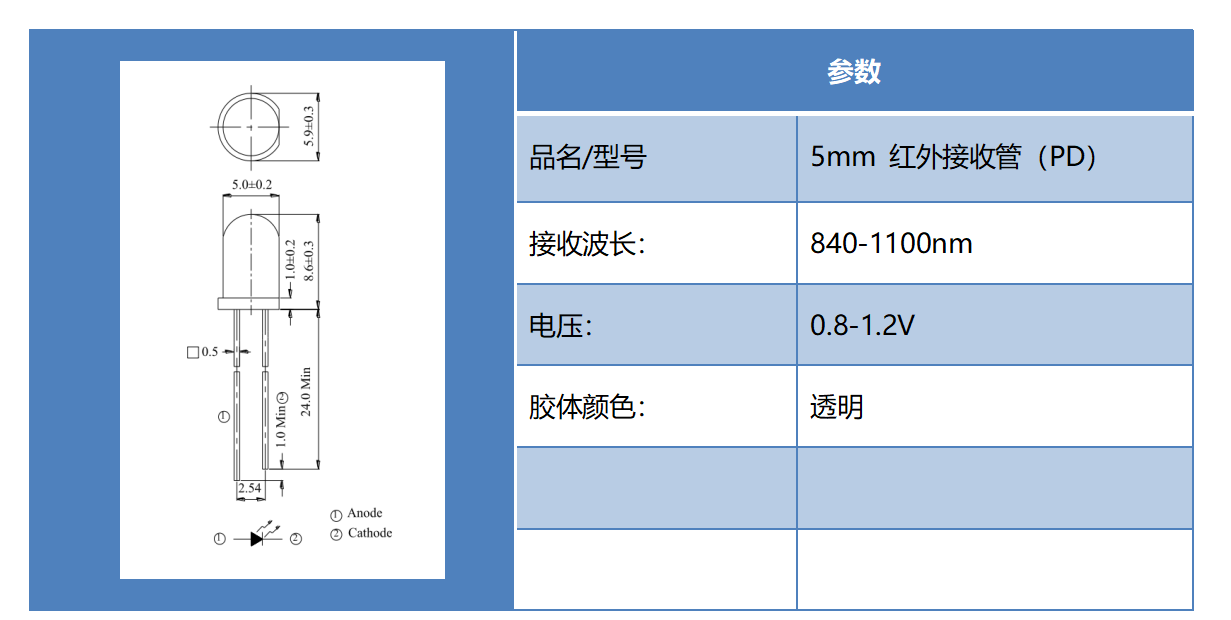

| Package Type | 5mm round black filtered epoxy body, standard DIP through-hole package |
|---|---|
| Body Size | Head diameter 5.0 ± 0.2mm; total epoxy body height 8.6 ± 0.3mm |
| Lead Specification | Total lead length ≥24.0mm, standard 2.54mm pitch, customizable equal-length leads or long/short leads |
| Spectral Range | 840nm–1100nm, suitable for matching with 940nm infrared emitting light sources |
| Reverse Voltage | 0.8–1.2V |
| Package Material | Black light-shielding epoxy resin, effectively reducing visible light interference |
| Lead Material | Nickel-plated copper leads, oxidation-resistant with stable soldering performance |
| Polarity | Long lead: Anode; short lead: Cathode |
Black Filter Package
The black epoxy body filters visible light such as sunlight and indoor lighting, helping reduce false triggering and improving recognition stability in strong-light environments.
Extended Cuttable Leads
The 24mm straight leads can be freely trimmed to match different PCB pad distances, double-layer boards, and long-distance wiring layouts without additional processing parts.
High-Sensitivity PD Chip
The imported photodiode chip provides long sensing distance, fast response speed, and stable capture of weak infrared signals, improving overall device sensitivity.
Strict Parameter Consistency
Chips from the same batch are screened and sorted to ensure minimal differences in dark current and sensitivity, helping reduce defect rates in mass production.
Heat-Resistant Anti-Aging Epoxy
The epoxy package resists yellowing under high and low temperature conditions, maintaining stable parameters during long-term 24-hour continuous operation.
Reliable Matching Performance
Designed to work with 940nm infrared emitters, this receiver supports stable infrared beam modules, sensing devices, and non-contact detection systems.
Typical Application Scenarios
- Security Equipment Infrared alarms, surveillance night-vision sensing, and door/window infrared detectors.
- Infrared Beam Modules Automatic doors, sensor faucets, light curtain counting systems, and smart trash cans.
- Smart Identification Barcode scanners, attendance machines, gesture sensing systems, and infrared ranging modules.
- Home Appliance Remote Reception Air conditioners, televisions, robotic cleaners, and smart home receiving devices.
- Industrial Automation Photoelectric sensors, production line object detection, and non-contact counting switches.
Packaging & Customization Service
Standard Packaging: Anti-static vacuum bag, 1000pcs per bag.
Customization Options: Lead length, long/short leads, spectral sorting, tape-and-reel packaging, and customized receiving angle.
Lead Time: Standard stock ships within 24 hours; special customized specifications are usually completed within 3–7 working days.
